“The Strongest & Most Rugged Feedmixers Built”

WHAT MAKES CATTLELAC THE BEST:

  • Experienced Staff 55+ years of combined experience

  • Canadian Built

  • Stronger Flighting, Bearings, Sprockets & Chain

  • Heavier Liners – to last through years of feeding

  • A Simple System – Less moving parts means less down time

  • Powder Coat Paint – to withstand all elements

  • Available in Trailer, Truck Mounted or Stationary

  • 200 – 1000 cu ft

  • 3 or 4 auger (depending on the model)

  • Leasing & Financing Available O.A.C.




Current Models Available

Cattlelac+Model+450+Feedmixer

Model 450 - 4 Auger Planetary Drive

Capacity: 450 cu. ft.
Weight (empty): 14,100 lbs.
Length Overall: 20 ft.
Length Inside: 15 ft.
Height: 95”
Width Overall: 92”

Left Hand Discharge: 40”Wx36”L
Augers: 2
Diameter: 10”
Flighting Thickness: 3/16”
Drive: Hydraulic

Upper Augers: 2
Diameter: 24”
Thickness - Notched: 3/8” ARW Plate
Tube Size: 6 1/2” x 1/2”

Lower Augers: 2
Diameter: 24”
Thickness - Notched: 1/2” ARW Plate
Tube Size: 6 1/2” x 1/2”

Side Wall Thickness: 1/4”
End Wall Thickness:
1/4” + 1/4” reinforcement
Bottom Thickness:
1/2”
Top Auger Shaft Diameter:
2 15/16”
Bottom Auger Shaft Diameter:
2 15/16”
Auger Drive Chain (Upper):
#100H
Auger Drive Chain (Lower):
#120H
Auger Drive Chain (Discharge):
#60
Trailer Frame:
6” x 8” x 1/2”
Tires:
425/65R x 22.5
Scale Type:
4 Bars
Scale Bar Diameter:
2 1/8”
Chain Enclosure:
Oilbath - Swing Up Door

*Specs subject to change

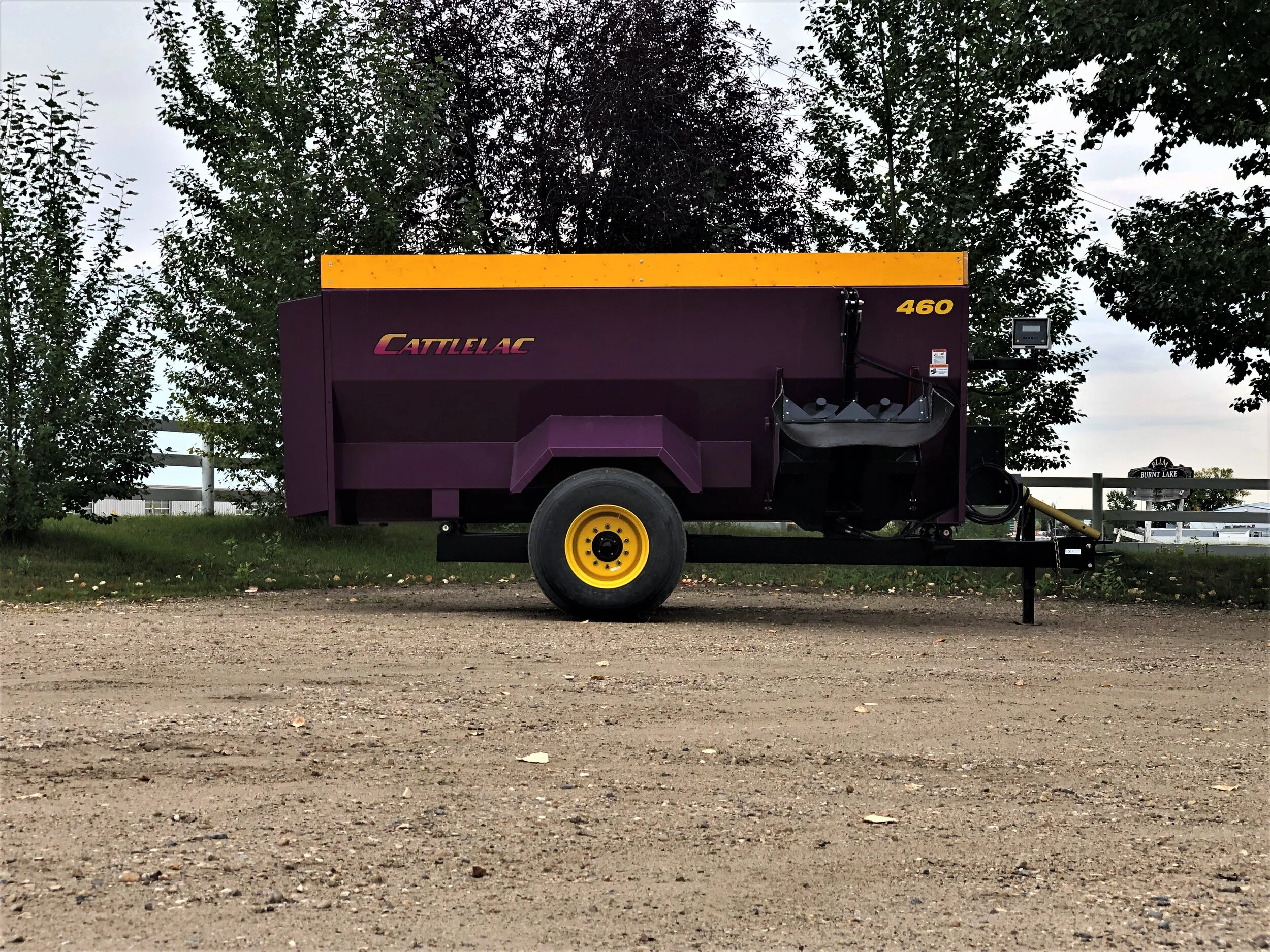

Cattlelac+Model+460+Feedmixer

Model 460 - 3 Auger Planetary Drive

Capacity: 460 cu. ft.
Weight (empty): 12,400 lbs.
Length Overall: 20 ft.
Length Inside: 15 ft.
Height: 95”
Width Overall: 92”

Right Hand Discharge: 40”Wx48”L
Augers: 2
Diameter: 10”
Flighting Thickness: 3/16”
Drive: Hydraulic

Upper Augers: 2
Diameter: 24”
Thickness - Notched: 3/8” ARW Plate
Tube Size: 6 1/2” x 1/2”

Lower Augers: 1
Diameter: 30”
Thickness - Notched: 1/2” ARW Plate
Tube Size: 6 1/2” x 1/2”

Side Wall Thickness: 1/4”
End Wall Thickness:
1/4” + 1/4” reinforcement
Bottom Thickness:
1/2”
Top Auger Shaft Diameter:
2 15/16”
Bottom Auger Shaft Diameter:
2 15/16”
Auger Drive Chain (Upper):
#100H
Auger Drive Chain (Discharge):
#60
Trailer Frame:
6” x 8” x 1/2”
Tires:
425/65R x 22.5
Scale Type:
4 Bars
Scale Bar Diameter:
2 1/8”
Chain Enclosure:
Swing Out Door

*Specs subject to change

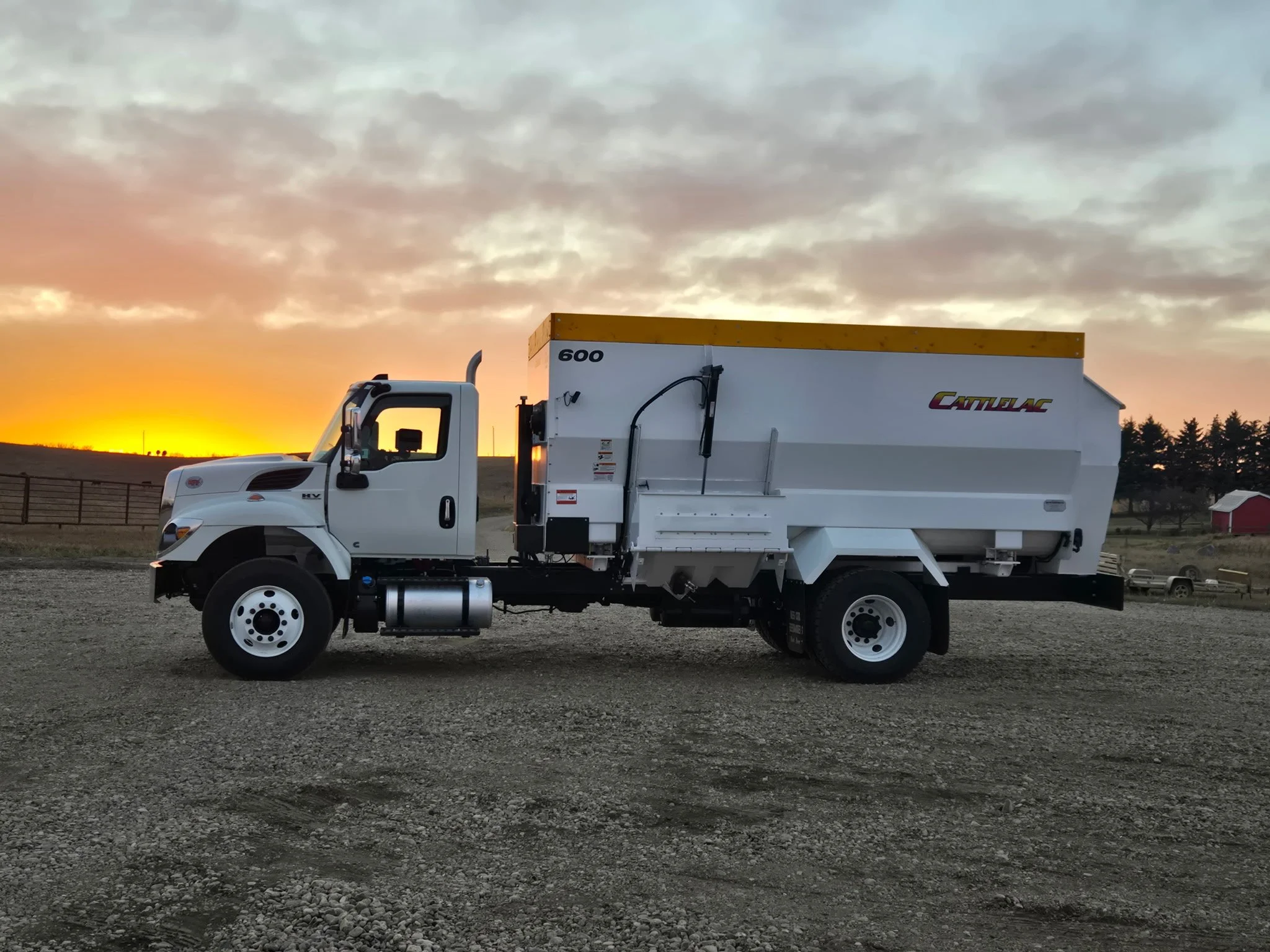

Cattlelac+Model+600+Feedmixer

Model 600 - 4 Auger - Truckmount SUPERIOR

Capacity: 600 cu. ft.
Weight (empty): 16,550 lbs.
Length Overall: 17.83 ft.
Length Inside: 16 ft.
Height: 82”
Width Overall (less discharge): 107”
Inside: 90”

Discharge - Stainless Steel Liner: 50”W
Augers: 3
Diameter: 12”
Flighting Thickness: 1/4” ARW Plate
Drive: Hydraulic
Height: Adjustable

Upper Augers: 2
Diameter: 28”
Flighting Thickness: 3/8” ARW Plate
Tube Size: 7” x 1/2” wall

Lower Augers: 2
Diameter: 30”
Thickness: 1/2” ARW Plate
Tube Size: 7” x 1/2” wall

Side Wall Thickness: 1/4”
End Wall Thickness:
1/4” + 1/4” reinforcement
Bottom Thickness:
3/8” + 10 gauge stainless steel
Auger Shaft Bearings: (Flanged Dbl. Tapered Roller Bearing)
Auger Shaft Diameter: 3 7/16”
Lower Right Auger Shaft Diameter:
3 15/16”
Auger Drive Chain (Upper):
#120H
Auger Drive Chain (Lower):
#160H
Auger Drive Chain (Discharge):
#60
Scale Type:
4 Cells
Chain Enclosure:
Oilbath with easy open door

*Specs subject to change

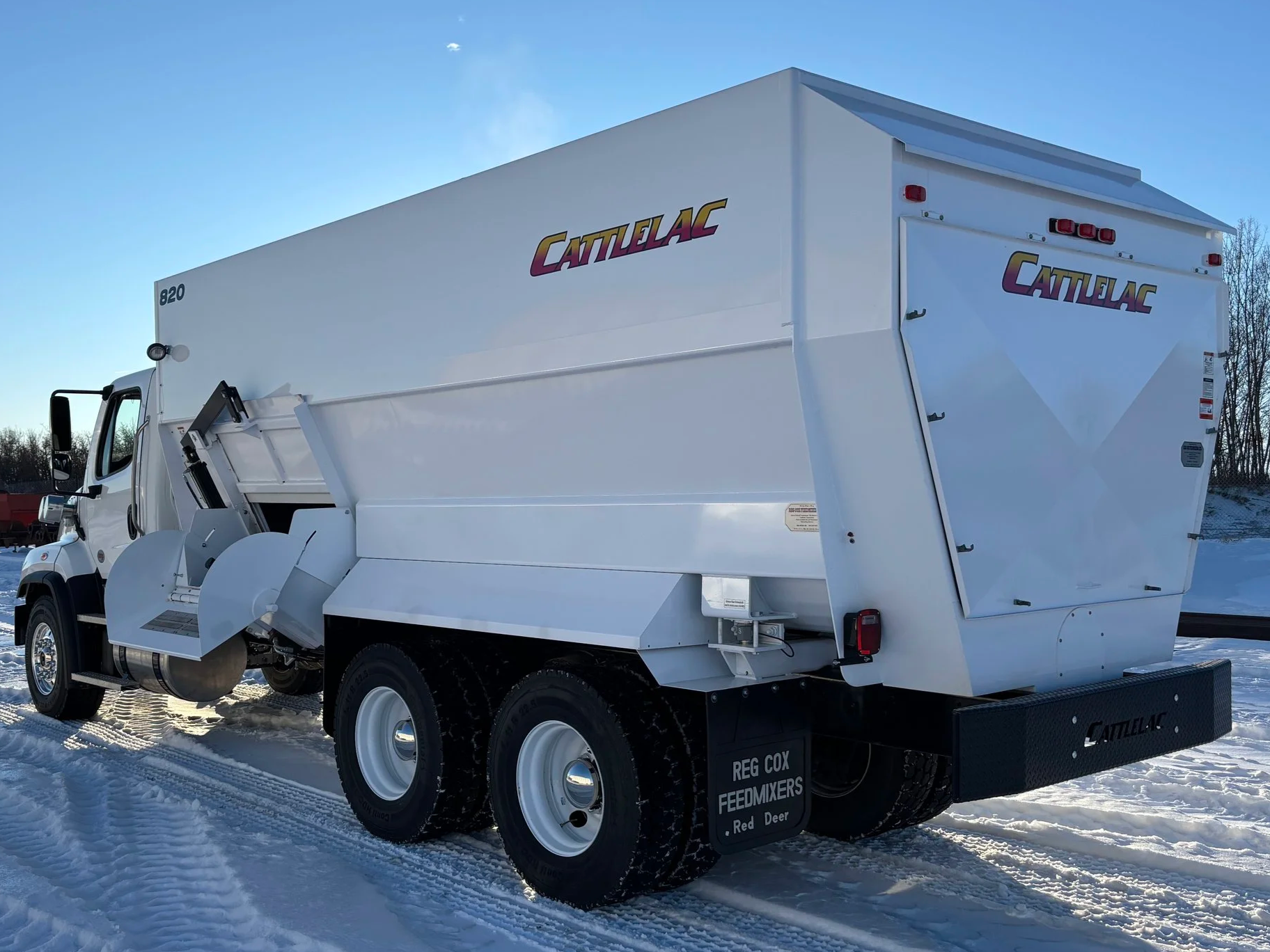

Cattlelac+Model+820+Feedmixer

Model 820 - 4 Auger - Truckmount SUPERIOR

Capacity: 820 cu. ft.
Weight (empty): 22,000 lbs.
Length Overall: 238”
Length Inside: 216”
Height: 92”
Width Overall (less discharge): 107”
Inside: 90”

Discharge - Stainless Steel Liner: 50”W
Augers: 3
Diameter: 12”
Flighting Thickness: 1/4” ARW Plate
Drive: Hydraulic
Height: Adjustable

Upper Augers: 2
Diameter: 28”
Flighting Thickness: 3/8” ARW Plate
Tube Size: 8 5/8” x 3/8” wall

Lower Augers: 2
Diameter: 30”
Thickness: 1/2” ARW Plate
Tube Size: 8 5/8” x 1/2” wall

Side Wall Thickness: 3/8” and 1/4”
End Wall Thickness:
1/4” + 1/4” reinforcement
Bottom Thickness:
3/8” + 10 gauge stainless steel liner
Auger Shaft Bearings: (Flanged Dbl. Tapered Roller Bearing)
Auger Shaft Diameter: 3 7/16”
Lower Right Auger Shaft Diameter:
3 15/16”
Auger Drive Chain (Upper):
#120H
Auger Drive Chain (Lower):
#160H
Auger Drive Chain (Discharge):
#60
Scale Type:
4 Cells
Chain Enclosure:
Oilbath with easy open door

*Specs subject to change

Canadian Built




Rebuilt Feedmixers Available

We have a variety of used makes and models that quickly move through our lot. Give us a call today to find out more about what current models are on the lot.
